Eccentric Sifter

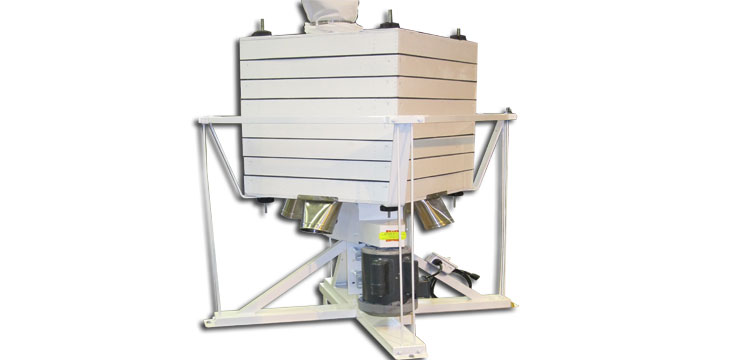

The Meadows Eccentric Sifter is used for screening a variety of dry, free-flowing products ranging in size from 1/4" to 100-mesh. Processing capacity up to 1,500 pounds per hour. Each sifter has four outlets. Depending on the application, the sifter can be configured for up to three separations. The fourth outlet is devoted to discharging overs.

Specifications

  • Processes up to 1,500 lbs per hour
  • Inlets and outlets are Stainless Steel
  • Center sieve section is made to hold up to 6 screens
  • Utilizes ourhorizontal gyratory motion to reduce product degradation
  • Unit is powered by a 3/4 HP, 1,200 RPM, 60 Hertz electric motor

Available Options

Other options and configuration may be available.

Get a complete list of options and configurations by giving us a call.
