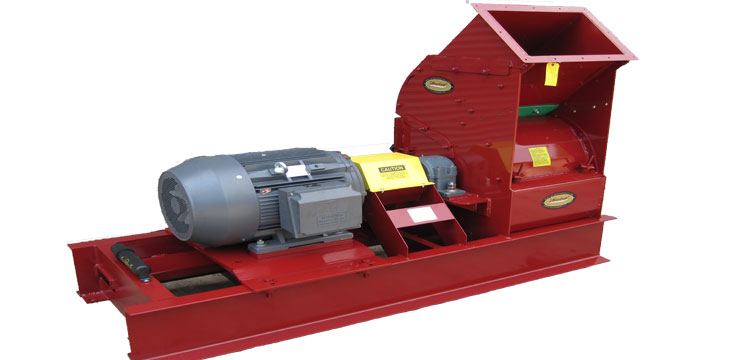

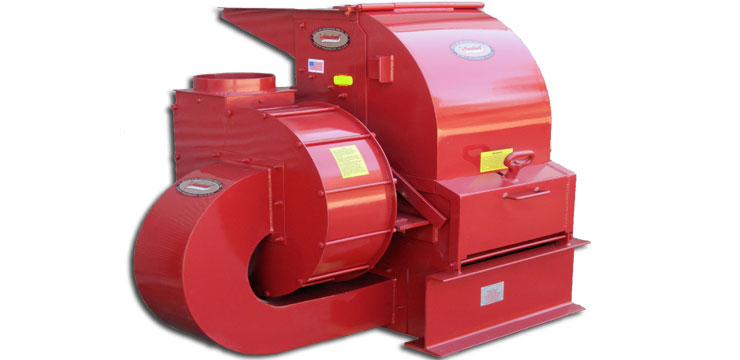

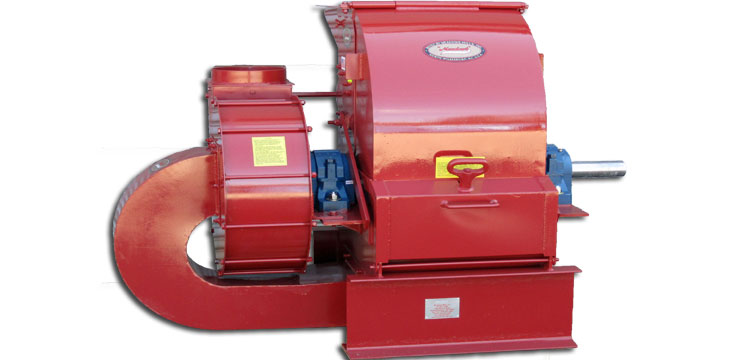

Model 85

Meadows hammer mills are durable utility grinders capable of grinding most dry, free-flowing materials. Hammer mills operate on the principle that most materials will grind or crush upon impact with the hammers.

Specifications

  • 3600 Operating RPM
  • Grinding Capacity of 4000-10000 lbs. per hour
  • 28 Hammers
  • Hammer Size: 7" x 2" x 3/8"
  • Screen Size: 20 1/2" x 37 1/4"
  • 12" Round Rotor Disc
  • 29 Rotor Disc per mill
  • 6 Blade Fan Wheel
  • Fan Wheel(Dia. x W): 20 1/2" x 8 1/2"
  • Feed Opening(W x H): 20 1/2" x 11"

Available Options

There are several models to choose from, with differing rates of grind and capacity of material.

Get a complete list of options and configurations by giving us a call.
